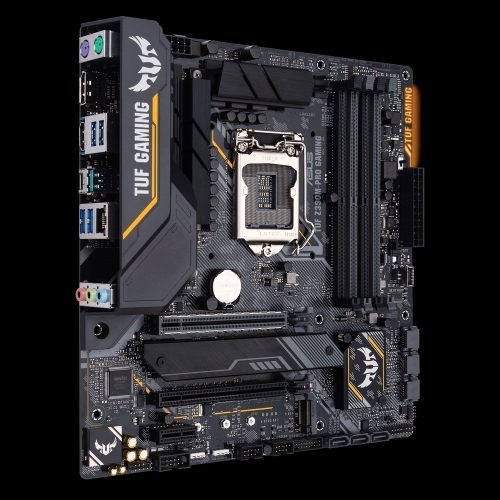

ASUS TUF Z390M-PRO GAMING

ASUS TUF Z390M-PRO GAMING
Gamintojas: ASUS
Modelis: ASUS TUF Z390M-PRO GAMING
Apdovanojimo taškai:
Prieinamumas: Išparduota
Kaina: 169.33€
Be PVM: 139.94€
ASUS TUF Z390M-PRO GAMING
Audio Integrated YES
Expansion Ports PS/2
RJ-45
DisplayPort
Audio jack(s)
HDMI
USB 3.1 Type-A
USB 3.1 Type-C
Firewire Connection 0
Graphic Card Only if integrated in CPU
Highlights TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
GPU Temperature Sensing & Fan Xpert 4: Ensures every fan achieves the best balance of cooling performance and acoustics
MemOK! II: Automatically fixes boot failures that arise due to memory overclocking and instability
OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
Integrated Vga NO
Internal Connector 1 x AIO_PUMP connector (4 -pin)
2 x Lighting Control RGB Strip Header(s)
1 x MemOK! II switch(es)
1 x USB 3.1 Gen 2 front panel connector
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x S/PDIF out header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x Chassis Fan connector(s) (4 -pin)
1 x Serial Port Header
1 x System panel connector
1 x CPU Fan connector(s) (4 -pin)
1 x 8-pin EATX 12 V Power connector
1 x CPU OPT Fan connector(s) (4 -pin)
1 x 24-pin EATX Power connector(s)
1 x Clear CMOS jumper(s)
1 x Front panel audio connector(s) (AAFP)
6 x SATA 6Gb/s connector(s)
Length (cm) 24.4
Link https://www.asus.com/Motherboards/TUF-Z390M-PRO-GAMING/
Maximum Memory (gb) 64
Memory Bus DDR4-4133(OC)
DDR4-2666
DDR4-4266(OC)
DDR4-2400
DDR4-3300(OC)
DDR4-3866(OC)
DDR4-4000(OC)
DDR4-3400(OC)
DDR4-3466(OC)
DDR4-3600(OC)
DDR4-3733(OC)
DDR4-3200(OC)
DDR4-3000(OC)
DDR4-3333(OC)
DDR4-2133
DDR4-2800(OC)
Memory Technology DDR4
Dual channel
Mini-pci Slots 0
Motherboard Chipset Intel Z390
Multi Processor Support NO
Nic 10/100/1000
Parallel Ports 0
Pci Express 16x 1
Pci Express 1x 2
Pci Express 4x 0
Pci Express 8x 0
Pci Slots 0
Product Description ASUS TUF Z390M-PRO GAMING
Ps/2 Connectors 2
Raid YES
Raid-controller Raid 0, 1, 5, 10
Sata 3 Gb/s 0
Sata 6 Gb/s 6
Sata Connectors 6
Serial-ports 0
Socket LGA1151
Speaker Support 5 SPEAKERS
Supports Cpu Supports Intel 14 nm CPU
Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 3.0
Total Memory Slots 4
Usb 2.0 0
Usb 3.0 0
Usb 3.1 6
Usb-ports 6
Width (cm) 24.4
