Audio Integrated | YES |
Expansion Ports | DVI-D PS/2 RJ-45 USB 2.0 Optical S/PDIF Out HDMI VGA Audio jack(s) USB 3.1 Type-A USB 3.1 Type-C |
Firewire Connection | 0 |
Graphic Card | - |
Highlights | AMD Quad CrossFireX™ and CrossFireX™ 10 Power Phase design Supports DDR4 4300MHz+ (OC) Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key E for WiFi ASRock Polychrome SYNC 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps 2 USB 3.1 Gen2 (Rear Type-A+C), 6 USB 3.1 Gen1 (4 Front, 2 Rear) 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3) Graphics Output Options: HDMI, DVI-D, D-Sub Intel® Gigabit LAN |
Integrated Vga | NO |
Internal Connector | 1 x Thunderbolt™ AIC Connector (5-pin) 2 x RGB LED Headers 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) 1 x Addressable LED Header 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) 1 x Performance Mode / Easy OC Header 1 x Power LED and Speaker Header 1 x 24 pin ATX Power Connector 1 x COM Port Header 1 x Front Panel Audio Connector 1 x TPM Header 1 x CPU Fan connector (4-pin) 1 x 8 pin 12V power connector |
Length (cm) | 30.5 |
Link | https://www.asrock.com/mb/Intel/Z390%20Phantom%20Gaming%204/index.asp |
Maximum Memory (gb) | 64 |
Memory Bus | DDR4-2666 DDR4-4300+(OC) DDR4-3600(OC) DDR4-3733(OC) DDR4-3200(OC) DDR4-2133 DDR4-2800(OC) DDR4-2400 DDR4-2933(OC) DDR4-3800(OC) DDR4-3866(OC) DDR4-4000(OC) DDR4-4133(OC) |
Memory Technology | DDR4 Dual channel |
Mini-pci Slots | 0 |
Motherboard Chipset | Intel Z390 |
Multi Processor Support | NO |
Nic | 10/100/1000 |
Parallel Ports | 0 |
Pci Express 16x | 2 (x16/x4) |
Pci Express 1x | 3 |
Pci Express 4x | 0 |
Pci Express 8x | 0 |
Pci Slots | 0 |

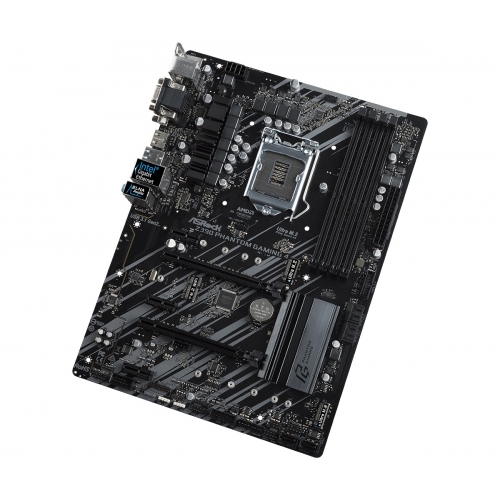

Product Description | Z390 PHANTOM GAMING 4 |
Ps/2 Connectors | 1 |
Raid | YES |
Raid-controller | Raid 0, 1, 5, 10 |
Sata 3 Gb/s | 0 |
Sata 6 Gb/s | 6 |
Sata Connectors | 6 |
Serial-ports | 0 |
Socket | LGA1151 |
Speaker Support | 8 SPEAKERS |
Supports Cpu | 10 Power Phase design Digi Power design Supports ASRock BCLK Full-range Overclocking Supports Intel® K-Series unlocked CPUs Supports Intel® Turbo Boost 2.0 Technology Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz |
Total Memory Slots | 4 |
Usb 2.0 | 2 |
Usb 3.0 | 0 |
Usb 3.1 | 4 |
Usb-ports | 6 |
Width (cm) | 22.4 |
