Audio Integrated | YES |
Expansion Ports | RJ-45 PS/2 HDMI USB 3.1 Type-A USB 3.1 Type-C USB 3.1 Audio jack(s) Optical S/PDIF Out |
Firewire Connection | 0 |
Graphic Card | Only if integrated in CPU |
Highlights | 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect Intel® Gigabit LAN, Intel® 802.11ac + BT 4.2 Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) Supports DDR4 3466+ (OC) ASRock Polychrome RGB 2 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCIe 2.0 x1 3 USB 3.1 Gen2 (Rear Type A+C, Front Type-C), 10 USB 3.1 Gen1 (4 Front, 6 Rear) 8 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen2 x4 & SATA3) NVIDIA® Quad SLI™, AMD Quad CrossFireX™ |
Integrated Vga | NO |
Internal Connector | 1 x RGB LED Header 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) 1 x Addressable LED Header 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x AMD Fan LED Header 1 x AMD LED Fan USB Header 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15? Gold Audio Connector) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) 1 x Power LED and Speaker Header 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Dr. Debug with LED 1 x CPU Fan connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM3142) |
Length (cm) | 30.5 |
Link | https://www.asrock.com/MB/AMD/X470%20Taichi/index.asp |
Maximum Memory (gb) | 64 |
Memory Bus | DDR4-3200(OC) DDR4-2133 DDR4-3466+(OC) DDR4-2400 DDR4-2667 DDR4-2933 |
Memory Technology | DDR4 Dual channel |
Mini-pci Slots | 0 |
Motherboard Chipset | AMD X470 |
Multi Processor Support | NO |
Nic | 10/100/1000 |
Parallel Ports | 0 |
Pci Express 16x | 3 (variuos configuration) |
Pci Express 1x | 2 |
Pci Express 4x | 0 |
Pci Express 8x | 0 |
Pci Slots | 0 |

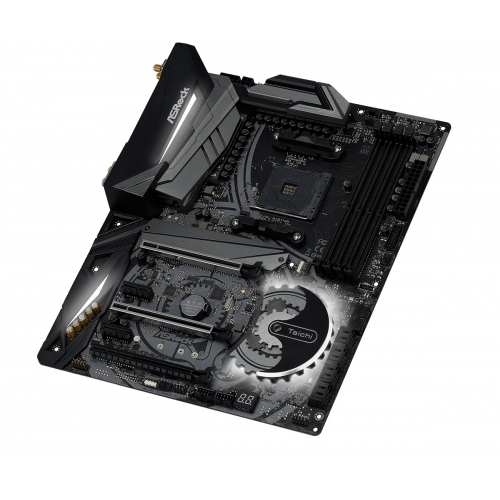

Product Description | X470 TAICHI |
Ps/2 Connectors | 1 |
Raid | YES |
Raid-controller | Raid 0, 1, 10 |
Sata 3 Gb/s | 0 |
Sata 6 Gb/s | 8 |
Sata Connectors | 8 |
Serial-ports | 0 |
Socket | SOCKET AM4 |
Speaker Support | 8 SPEAKERS |
Supports Cpu | Supports ASRock Hyper BCLK Engine II 16 Power Phase design IR Digital PWM Supports 300W EX OC Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge) |
Total Memory Slots | 4 |
Usb 2.0 | 0 |
Usb 3.0 | 0 |
Usb 3.1 | 8 |
Usb-ports | 8 |
Width (cm) | 24.4 |
