Audio Integrated | YES |
Expansion Ports | RJ-45 PS/2 HDMI USB 3.1 Type-A USB 3.1 Type-C USB 3.1 Audio jack(s) Optical S/PDIF Out |
Firewire Connection | 0 |
Graphic Card | Only if integrated in CPU |
Highlights | 2 USB 3.1 Gen2 (rear Type-A+C), 10 USB 3.1 Gen1 (4 Front, 6 Rear) Graphics Output: HDMI Polychrome RGB Intel® Gigabit LAN Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) Supports DDR4 3466+ (OC) 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen2 x2 & SATA3) 2 PCIe 3.0 x16, 4 PCIe 2.0 x1 NVIDIA® Quad SLI™, AMD Quad CrossFireX™ |
Integrated Vga | NO |
Internal Connector | 1 x RGB LED Header 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) 1 x Addressable LED Header 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x AMD Fan LED Header 1 x AMD LED Fan USB Header 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) 1 x Power LED and Speaker Header 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x COM Port Header 1 x Dr. Debug with LED 1 x Front Panel Audio Connector 1 x TPM Header 1 x CPU Fan connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) |
Length (cm) | 30.5 |
Link | https://www.asrock.com/MB/AMD/Fatal1ty%20X470%20Gaming%20K4/index.asp |
Maximum Memory (gb) | 64 |
Memory Bus | DDR4-3200(OC) DDR4-2133 DDR4-3466+(OC) DDR4-2400 DDR4-2667 DDR4-2933 |
Memory Technology | DDR4 Dual channel |
Mini-pci Slots | 0 |
Motherboard Chipset | AMD X470 |
Multi Processor Support | NO |
Nic | 10/100/1000 |
Parallel Ports | 0 |
Pci Express 16x | 2 (variuos configuration) |
Pci Express 1x | 4 |
Pci Express 4x | 0 |
Pci Express 8x | 0 |
Pci Slots | 0 |

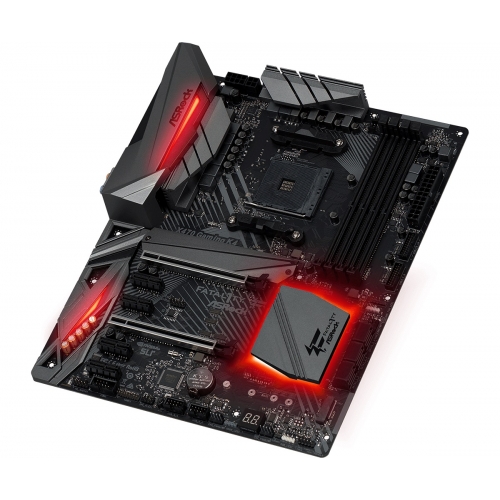

Product Description | X470 GAMING K4 |
Ps/2 Connectors | 1 |
Raid | YES |
Raid-controller | Raid 0, 1, 10 |
Sata 3 Gb/s | 0 |
Sata 6 Gb/s | 6 |
Sata Connectors | 6 |
Serial-ports | 0 |
Socket | SOCKET AM4 |
Speaker Support | 8 SPEAKERS |
Supports Cpu | Digi Power design Supports 95W Water Cooling (Summit Ridge) Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) Supports 105W Water Cooling (Pinnacle Ridge) Supports 65W Water Cooling (Raven Ridge) 12 Power Phase design |
Total Memory Slots | 4 |
Usb 2.0 | 0 |
Usb 3.0 | 0 |
Usb 3.1 | 8 |
Usb-ports | 8 |
Width (cm) | 24.4 |
