Audio Integrated | YES |
Expansion Ports | PS/2 RJ-45 Audio jack(s) Optical S/PDIF Out HDMI USB 3.2 USB 3.2 Type-A USB 3.2 Type-C |
Firewire Connection | 0 |
Graphic Card | Only if integrated in CPU |
Highlights | 7.1 CH HD Audio (Realtek ALC1220 Audio Codec) Supports Creative Sound Blaster Cinema 5 ASRock Polychrome SYNC 3 PCIe 4.0 x16, 2 PCIe 4.0 x1 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 8 USB 3.2 Gen1 (2 Front, 6 Rear) 8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4) Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0 NVIDIA® NVLink™, Quad SLI™, AMD 3-Way CrossFireX™ Phantom Gaming 2.5 Gigabit LAN, Intel® Gigabit LAN Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors Supports DDR4 4666+ (OC) |
Integrated Vga | NO |
Internal Connector | 1 x Clear CMOS button 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x Power Button with LED 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ AIC Card only) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x SPI TPM header 1 x Reset Button with LED 1 x RGB LED Header 1 x AMD Fan LED Header 1 x AMD LED Fan USB Header 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x Addressable LED Header 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Dr. Debug with LED 1 x CPU Fan connector (4-pin) 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15? Gold Audio Connector) 1 x Power LED and Speaker Header 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) |
Length (cm) | 30.5 |
Link | https://www.asrock.com/mb/AMD/X570%20Phantom%20Gaming%20X/ |
Maximum Memory (gb) | 128 |
Memory Bus | DDR4-2933 DDR4-2667 DDR4-4266(OC) DDR4-4400(OC) DDR4-2400 DDR4-3600(OC) DDR4-3733(OC) DDR4-2133 DDR4-4133(OC) DDR4-3800(OC) DDR4-3866(OC) DDR4-4000(OC) DDR4-4666+(OC) DDR4-3200(OC) DDR4-3466(OC) DDR4-4200(OC) |
Memory Technology | DDR4 Dual channel |
Mini-pci Slots | 0 |
Motherboard Chipset | AMD X570 |
Multi Processor Support | NO |
Nic | 10/100/1000 and 100/1000/2500 |
Parallel Ports | 0 |
Pci Express 16x | 3 (variuos configuration) |
Pci Express 1x | 2 |
Pci Express 4x | 0 |
Pci Express 8x | 0 |
Pci Slots | 0 |

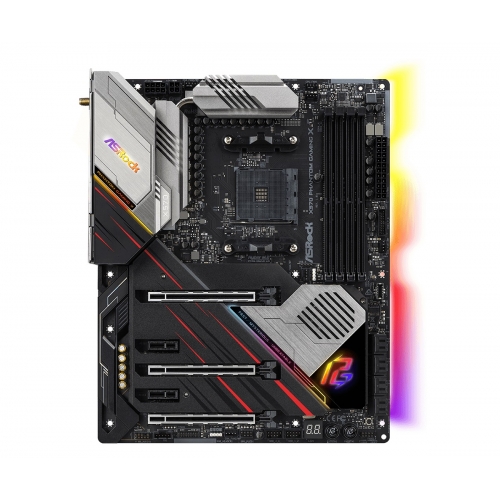

Product Description | X570 PHANTOM GAMING X |
Ps/2 Connectors | 1 |
Raid | YES |
Raid-controller | Raid 0, 1, 10 |
Sata 3 Gb/s | 0 |
Sata 6 Gb/s | 8 |
Sata Connectors | 8 |
Serial-ports | 0 |
Socket | SOCKET AM4 |
Speaker Support | 8 SPEAKERS |
Supports Cpu | Supports ASRock Hyper BCLK Engine II 14 Power Phase design Capable of providing extra 300W for CPU Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors Intersil Digital PWM |
Total Memory Slots | 4 |
Usb 2.0 | 0 |
Usb 3.0 | 0 |
Usb 3.1 | 0 |
Usb 3.2 | 8 |
Usb-ports | 8 |
Width (cm) | 24.4 |
