| Audio Integrated | YES |
| Expansion Ports | PS/2 RJ-45 Audio jack(s) HDMI USB 3.2 USB 3.2 Type-A DisplayPort |
| Firewire Connection | 0 |
| Graphic Card | Only if integrated in CPU |
| Highlights | AMD Quad CrossFireX™ and CrossFireX™ Intel® Gigabit LAN ASRock Polychrome SYNC 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2(Key E) For WiFi 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps Supports DDR4 4066+ (OC) 2 USB 3.2 Gen2 (Rear Type-A), 10 USB 3.2 Gen1 (4 Front, 6 Rear) Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4) 10 Power Phase design Graphics Output Options: HDMI, DisplayPort |
| Integrated Vga | NO |
| Internal Connector | 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ AIC Card only) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x SPI TPM header 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x AMD LED Fan USB Header 2 x RGB LED Headers 1 x Addressable LED Header 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x COM Port Header 1 x Front Panel Audio Connector 1 x CPU Fan connector (4-pin) 1 x 8 pin 12V power connector 1 x Power LED and Speaker Header |
| Length (cm) | 30.5 |
| Link | https://www.asrock.com/mb/AMD/X570%20Phantom%20Gaming%204/index.asp |
| Maximum Memory (gb) | 128 |
| Memory Bus | DDR4-2933 DDR4-2667 DDR4-2400 DDR4-3600(OC) DDR4-3733(OC) DDR4-2133 DDR4-3800(OC) DDR4-3866(OC) DDR4-4000(OC) DDR4-4066+(OC) DDR4-3200(OC) DDR4-3466(OC) |
| Memory Technology | DDR4 Dual channel |
| Mini-pci Slots | 0 |
| Motherboard Chipset | AMD X570 |
| Multi Processor Support | NO |
| Nic | 10/100/1000 |
| Parallel Ports | 0 |
| Pci Express 16x | 2 (variuos configuration) |
| Pci Express 1x | 2 |
| Pci Express 4x | 0 |
| Pci Express 8x | 0 |
| Pci Slots | 0 |

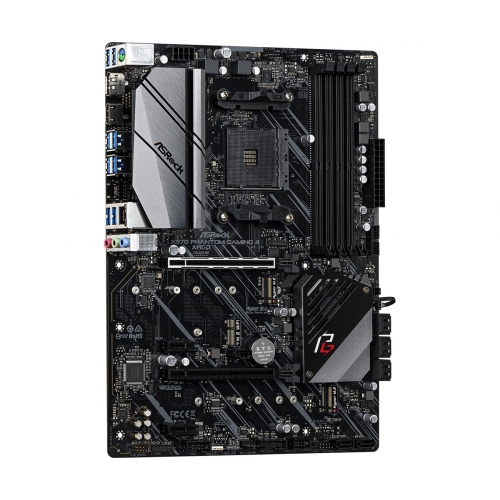

| Product Description | X570 PHANTOM GAMING 4 |
| Ps/2 Connectors | 1 |
| Raid | YES |
| Raid-controller | Raid 0, 1, 10 |
| Sata 3 Gb/s | 0 |
| Sata 6 Gb/s | 8 |
| Sata Connectors | 8 |
| Serial-ports | 0 |
| Socket | SOCKET AM4 |
| Speaker Support | 5 SPEAKERS |
| Supports Cpu | 10 Power Phase design Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors Intersil Digital PWM |
| Total Memory Slots | 4 |
| Usb 2.0 | 0 |
| Usb 3.0 | 0 |
| Usb 3.1 | 0 |
| Usb 3.2 | 8 |
| Usb-ports | 8 |
| Width (cm) | 22.9 |
