| Audio Integrated | YES |
| Expansion Ports | USB 3.2 DVI-D PS/2 USB 2.0 RJ-45 HDMI Audio jack(s) D-SUB |
| Firewire Connection | 0 |
| Graphic Card | Only if integrated in CPU |
| Highlights | EZ Debug LED: Easiest way to troubleshoot Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 Audio Boost: Reward your ears with studio grade sound quality. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. PCI-E Steel Slot: Protecting VGA cards against bending. DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability. Supports DDR4 Memory, up to 3466+(OC) MHz |
| Integrated Vga | NO |
| Internal Connector | 1 x LED strip connector 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 2 x Front panel connectors 1 x TPM module connector 1 x 8-pin ATX 12V power connector 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 24-pin ATX main power connector 1 x Serial port connector 4 x SATA 6Gb/s connectors 1 x 4-pin system fan connector 1 x 4-pin CPU fan connector 1 x Front Panel Audio Connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
| Length (cm) | 24.4 |
| Link | https://www.msi.com/Motherboard/B450M-PRO-M2-MAX |
| Maximum Memory (gb) | 32 |
| Memory Bus | DDR4-3000(OC) DDR4-2400 DDR4-3466(OC) DDR4-3733(OC) DDR4-2933(OC) DDR4-3866(OC) DDR4-4000(OC) DDR4-4133(OC) DDR4-1866 DDR4-2133 DDR4-2800(OC) DDR4-3200(OC) DDR4-3066(OC) DDR4-2667 |
| Memory Technology | Dual channel DDR4 |
| Mini-pci Slots | 0 |
| Motherboard Chipset | AMD B450 |
| Multi Processor Support | NO |
| Nic | 10/100/1000 |
| Parallel Ports | 0 |
| Pci Express 16x | 1 |
| Pci Express 1x | 2 |
| Pci Express 4x | 0 |
| Pci Express 8x | 0 |
| Pci Slots | 0 |

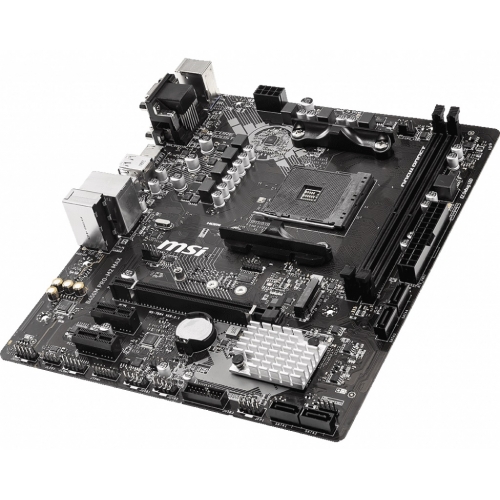

| Product Description | B450M PRO-M2 MAX |
| Ps/2 Connectors | 2 |
| Raid | YES |
| Raid-controller | Raid 0, 1, 10 |
| Sata 3 Gb/s | 0 |
| Sata 6 Gb/s | 4 |
| Sata Connectors | 4 |
| Serial-ports | 0 |
| Socket | SOCKET AM4 |
| Speaker Support | 5 SPEAKERS |
| Supports Cpu | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
| Total Memory Slots | 2 |
| Usb 2.0 | 2 |
| Usb 3.0 | 0 |
| Usb 3.1 | 0 |
| Usb 3.2 | 4 |
| Usb-ports | 6 |
| Width (cm) | 20.6 |
