| Audio Integrated | YES |
| Bios | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Cpu Support | Intel® Socket 1150 for the New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors |
| Expansion Ports | DVI-D PS/2 RJ-45 USB 3.0 VGA Audio jack(s) |
| Firewire Connection | 0 |
| Graphic Card | Only if integrated in CPU |
| Highlights | AI Suite 3: One-stop access to innovative ASUS features CrashFree BIOS 3: Restore corrupted BIOS data from USB storage New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added EPU - All-round energy efficiency and detailed CPU wattage settings GPU Boost - Go to the limit with iGPU level up! |
| Integrated Vga | NO |
| Internal Connector | 1 x 24-pin EATX Power connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Front panel audio connector(s) (AAFP) 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 1 x COM port(s) connector(s) 1 x Chassis Intrusion connector(s) 1 x Front panel connector(s) 1 x 4-pin ATX 12V Power connector(s) 2 x SATA 3Gb/s connector(s) 1 x Internal speaker connector(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x Chassis Fan connector(s) (1 x 4 -pin) 2 x SATA 6Gb/s connector(s) 1 x LPT header 1 x 14-1 pin TPM connector |
| Length (cm) | 19 |
| Link | http://www.asus.com/Motherboards/H81MP/specifications/ |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Maximum Memory (gb) | 16 GB |
| Memory Bus | DDR3-1066 DDR3-1333 DDR3-1600 |
| Memory Technology | non-ECC Dual channel un-buffered |
| Mini-pci Slots | 0 |
| Motherboard Chipset | Intel H81 |
| Multi Processor Support | NO |
| Nic | 10/100/1000 |
| Parallel Ports | 0 |
| Pci Express 16x | 1 |
| Pci Express 1x | 1 |
| Pci Express 4x | 0 |
| Pci Express 8x | 0 |
| Pci Slots | 0 |

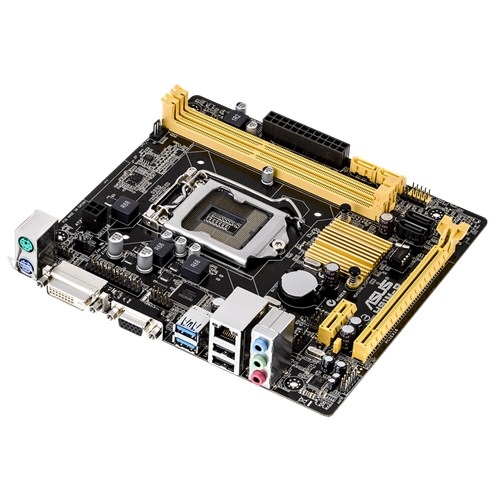

| Product Description | Cost attractive micro-ATX H81 choice features four USB 3.0 ports, easy-to-use UEFI BIOS and the AI Suite 3 software package |
| Ps/2 Connectors | 2 |
| Raid | NO |
| Raid-controller | - |
| Sata 3 Gb/s | 2 |
| Sata 6 Gb/s | 2 |
| Sata Connectors | 4 |
| Serial-ports | 0 |
| Socket | LGA1150 |
| Speaker Support | 5 SPEAKERS |
| Total Memory Slots | 2 |
| Usb 2.0 | 2 |
| Usb 3.0 | 2 |
| Usb-ports | 4 |
| Width (cm) | 17.7 |
