| Audio Integrated | YES |
| Expansion Ports | PS/2 RJ-45 USB 2.0 HDMI D-SUB USB 3.1 Type-A Audio jack(s) |
| Firewire Connection | 0 |
| Graphic Card | Only if integrated in CPU |
| Highlights | ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies 5X Protection III Hardware-level safeguards provide component longevity and reliability Designed exclusively for 8th generation Intel® Core™ processors to maximize connectivity and speed with an integrated M.2 slot FanXpert delivers advanced fan controls for dynamic cooling On-board 8-Channel HD Audio provides warm, immersive crystal-clear surround sound |
| Integrated Vga | NO |
| Internal Connector | 1 x Speaker connector 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x 24-pin EATX Power connector(s) 1 x Clear CMOS jumper(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Front panel audio connector(s) (AAFP) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x S/PDIF out header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x System panel connector |
| Length (cm) | 22.6 |
| Link | https://www.asus.com/us/Motherboards/PRIME-H310M-E/ |
| Maximum Memory (gb) | 32 |
| Memory Bus | DDR4-2666 DDR4-2133 DDR4-2400 |
| Memory Technology | DDR4 Dual channel |
| Mini-pci Slots | 0 |
| Motherboard Chipset | Intel H310 |
| Multi Processor Support | NO |
| Nic | 10/100/1000 |
| Parallel Ports | 0 |
| Pci Express 16x | 1 |
| Pci Express 1x | 2 |
| Pci Express 4x | 0 |
| Pci Express 8x | 0 |
| Pci Slots | 0 |

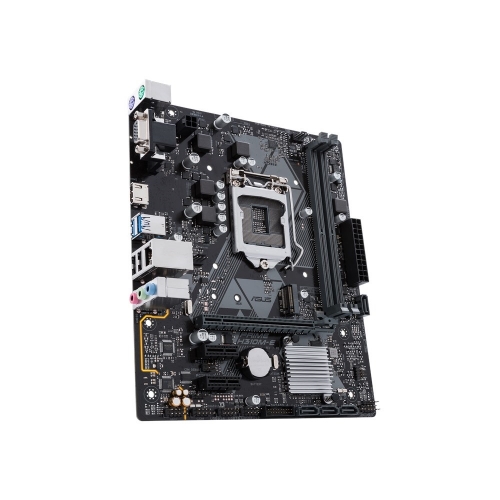

| Product Description | PRIME H310M-E |
| Ps/2 Connectors | 2 |
| Raid | NO |
| Raid-controller | - |
| Sata 3 Gb/s | 0 |
| Sata 6 Gb/s | 4 |
| Sata Connectors | 4 |
| Serial-ports | 0 |
| Socket | LGA1151 |
| Speaker Support | 5 SPEAKERS |
| Supports Cpu | Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Total Memory Slots | 2 |
| Usb 2.0 | 2 |
| Usb 3.0 | 0 |
| Usb 3.1 | 2 |
| Usb-ports | 4 |
| Width (cm) | 18.5 |
